RNA2207LL/3AS - NTN

RNA2207LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

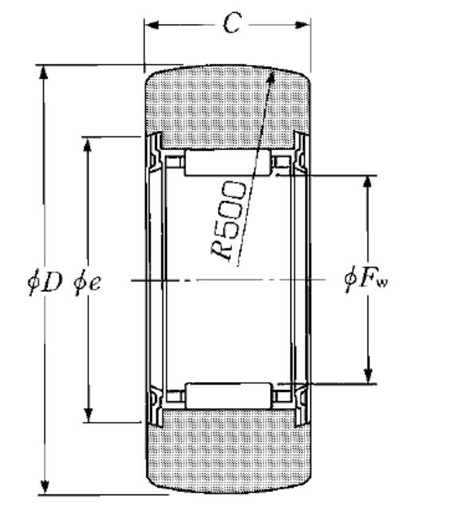

PRODUCT DEFINITION

D - External diameter 72 mm
Fw - Under rollers diameter 42 mm
C - Width of bearing, drawn cup or outer ring 22,7 mm
e - Inlet diameter of roller or washer 50 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Precision class P0
Mass 0,432 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 26,3 kN
C0r - Static load rating 47,5 kN
Track load capacity spherical outer ring 8,05 kN
Nlim - Grease lubrication limit speed 3600 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
