RNA22/8LL/3AS - NTN

RNA22/8LL/3AS
RNA22/8LL/3AS
RNA22/8LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

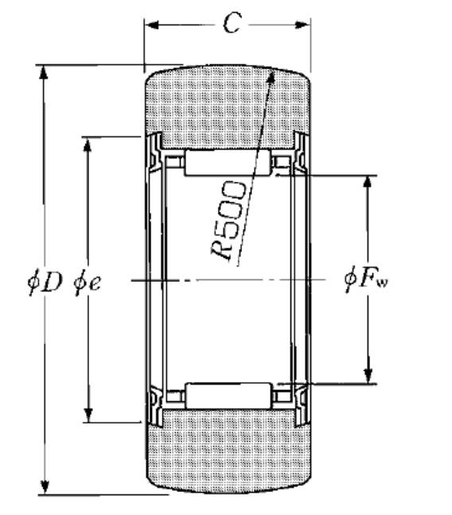

PRODUCT DEFINITION

D - External diameter 24 mm
Fw - Under rollers diameter 12 mm
C - Width of bearing, drawn cup or outer ring 11,8 mm
e - Inlet diameter of roller or washer 18 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Precision class P0
Mass 0,027 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 5,15 kN
C0r - Static load rating 5,25 kN
Track load capacity spherical outer ring 1,9 kN
Nlim - Grease lubrication limit speed 10000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
