RNAB200 - NTN

RNAB200

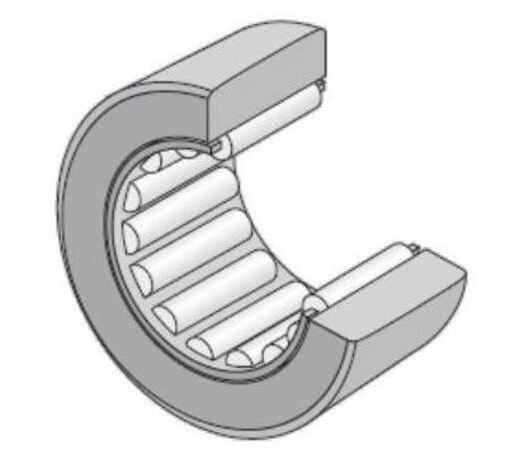

Needle roller bearing, roller follower, with cage, separable, without inner ring, spherical outer ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

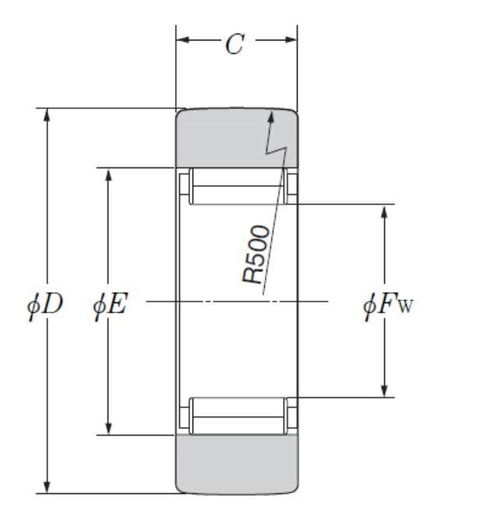

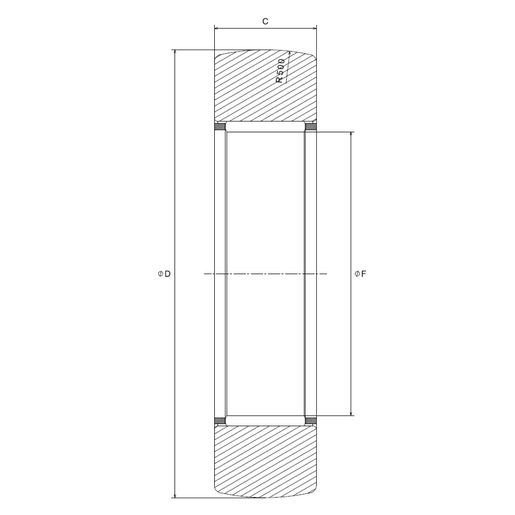

PRODUCT DEFINITION

D - External diameter 30 mm
Fw - Under rollers diameter 14 mm
C - Width of bearing, drawn cup or outer ring 11,8 mm
E - Upper roller diameter 20 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Precision class P0
Mass 0,042 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 9,7 kN
C0r - Static load rating 5,2 kN
Track load capacity spherical outer ring 2,6 kN
Nlim - Grease lubrication limit speed 11000 tr/min
Nlim - Oil lubrication limit speed 14000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
