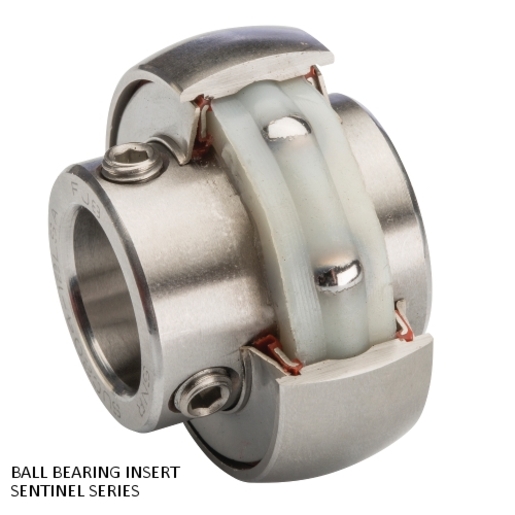

SENTINEL Series: Stainless steel insert ball bearing, spherical outer ring with anti-rotation ball, fixing by socket set screws, seals with slingers, "Full Pack" LUBSOLID food solid lubrication.
Log in
To add this product to your basketDocumentation
Product information

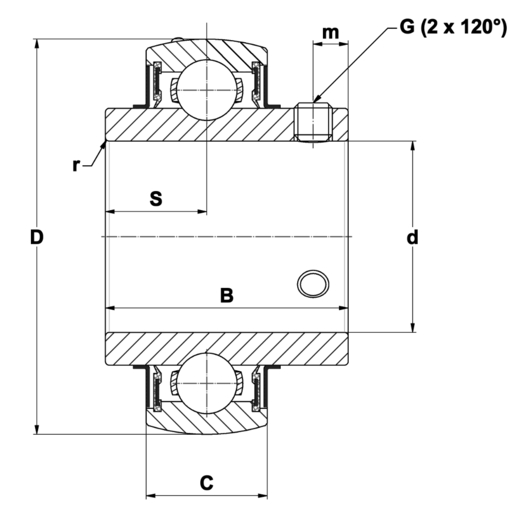

| PRODUCT DEFINITION | |
|---|---|
| Brand | SNR |
| B - Width of Inner Ring | 31 mm |
| C - Width of Outer Ring | 17 mm |
| C1 - Distance center of OR to center of lubrication zone | 3,7 mm |
| d - Shaft diameter | 20 mm |
| D - Outer diameter of OR | 47 mm |
| G - Set screw size | M6x1 |
| m - Distance to set screw | 5 mm |
| r - Radius Inner Ring | 0.5 |
| S - Distance front side/bearing centre | 12,7 mm |
| f0 - Factor | 13.2 |
| SW - Wrench size | 3 mm |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load rating | 12,8 kN |
| C0 - Static load rating | 6,6 kN |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| OTHER FEATURES | |
|---|---|
| Mass | 0,15 kg |
| Recommended tightening torque for set screw | 3,9 N-m |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Over rolling frequency on outer ring (60 rpm) | 3,063 Hz |
| BPFI - Over rolling frequency on inner (60 rpm) | 4,937 Hz |
| BSF - Over rolling frequency on rolling element (60 rpm) | 4,037 Hz |
| BRF - Rotational frequency – rolling element (60 rpm) | 2,018 Hz |
| FTF - Rotational frequency - cage (60 rpm) | 0,383 Hz |
