SUCP207-23 - SNR

SUCP207-23

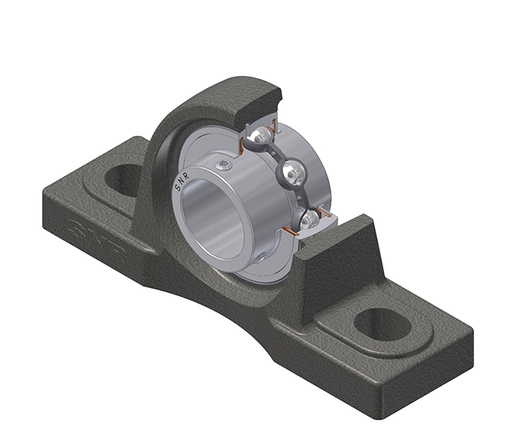

Stainless steel cast housing,stainless steel insert ball bearing with socket set screws,seal with slinger, food grease

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

CAD file

Technical datasheet

KitThis kit contains the following reference(s) - SUC207-23 - SP207
PLEASE LOGIN to add products to your basket
Contact us
Specs

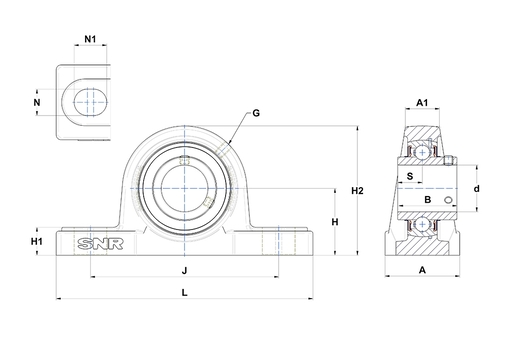

PRODUCT DIMENSIONS

Housing width (A) 48 mm
Housing top width (A1) 27 mm
Width of IR (B) 42,9 mm
Shaft dia (d) 36,513 mm
Grease fitting (G) M6x1
Distance mounting base to centerline spheric. seating diam. (H) 47,6 mm
Housing foot height (H1) 19 mm
Housing height (H2) 94 mm
Mounting hole distance (J) 127 mm
Housing length (L) 167 mm
Mounting hole dimension (N) 17 mm
Mounting hole length (N1) 21 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 17,5 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 25,6 kN
Static load rating (C0) 15,3 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,93 kg
Recommended tightening torque for set screw [Nm] 8,3 N-m
