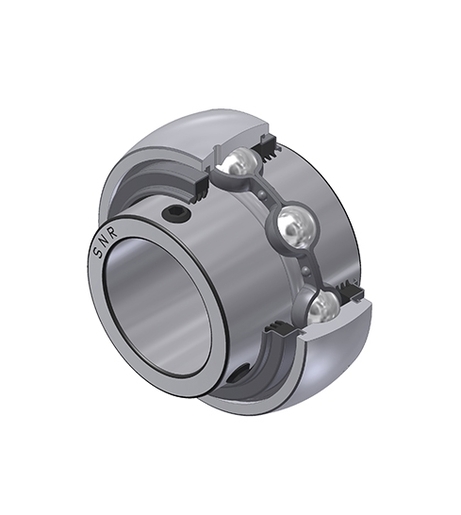

Spherical outer diameter, fixing by socket set screw, triple lip seal
Bearing inserts for bearing units, are proposed with different locking devices for easy assembly.
3D file
Technical datasheet
| PRODUCT DEFINITION | |
|---|---|
| Brand | SNR |
| B - Width of Inner Ring | 74,6 mm |
| C - Width of Outer Ring | 30 mm |
| C1 - Distance center of OR to center of lubrication zone | 9 mm |
| d - Shaft diameter | 70 mm |
| D - Outer diameter of OR | 125 mm |
| G - Set screw size | M12x1,25 |
| m - Distance to set screw | 12 mm |
| r - Radius Inner Ring | 2 |
| S - Distance front side/bearing centre | 30,2 mm |
| f0 - Factor | 14.4 |
| SW - Wrench size | 6 mm |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load rating | 62 kN |
| C0 - Static load rating | 45 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
| OTHER FEATURES | |
|---|---|
| Mass | 2,05 kg |
| Recommended tightening torque for set screw | 33 N-m |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Characteristic outer ring frequency (60 rpm) | 4,104 Hz |
| BPFI - Characteristic inner ring frequency (60 rpm) | 5,896 Hz |
| FTF - Characteristic cage frequency (60 rpm) | 0,41 Hz |
| BSF - Characteristic rolling element frequency (60 rpm) | 5,404 Hz |
