UCF204L4 - SNR

UCF204L4

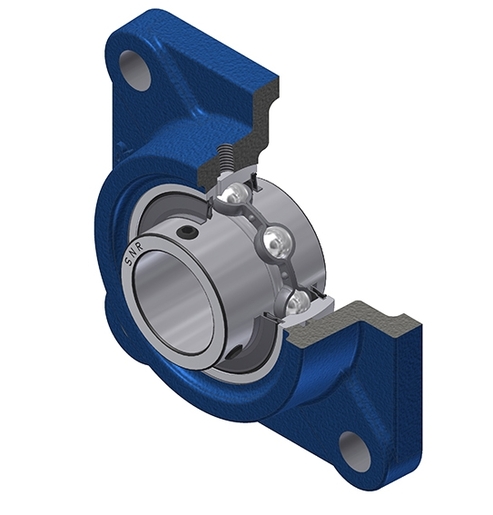

Grey cast housing, radial insert ball bearing with socket set screws,L4 sealing system

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC204G2L4 - F204
PLEASE LOGIN to add products to your basket
Contact us

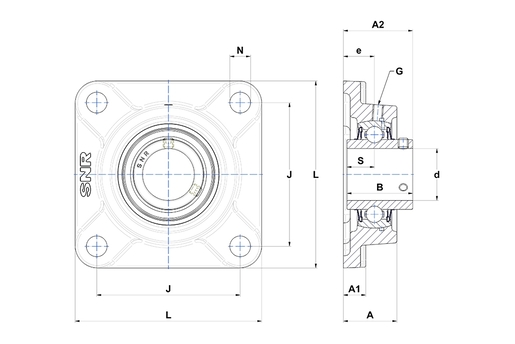

PRODUCT DEFINITION
BrandSNR
A - Housing height25,5 mm
A1 - Housing foot height / flange height11 mm
A2 - Total height from mounting surface33,3 mm
B - Width of Inner Ring31 mm
d - Shaft diameter20 mm
e - Distance mounting surface to bearing center15 mm
G - Grease fittingM6x1
J - Mounting holes distance64 mm
L - Housing width / diameter86 mm
N - Mounting hole dimension12 mm
S - Distance front side/bearing centre12,7 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,59 kg
Recommended tightening torque for set screw5,5 N-m
