UCF205-15NL3 - SNR

UCF205-15NL3

Grey cast housing, radial insert ball bearing with socket set screws,triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC205-15G2L3 - F205N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

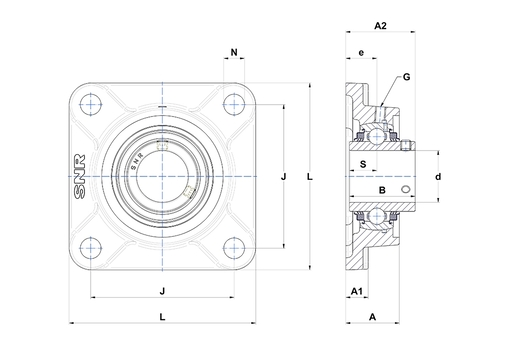

A - Housing height27 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface35,7 mm
B - Width of Inner Ring34 mm
d - Shaft diameter23,813 mm
e - Distance mounting surface to bearing center16 mm
G - Grease fittingM6x1
J - Mounting holes distance70 mm
L - Housing width / diameter95 mm
N - Mounting hole dimension12 mm
S - Distance front side/bearing centre14,3 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating14 kN
C0 - Static load rating7,88 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,79 kg
Recommended tightening torque for set screw3,7 N-m
