UCF206-20 - SNR

UCF206-20

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC206-20G2 - F206
PLEASE LOGIN to add products to your basket
Contact us
Specs

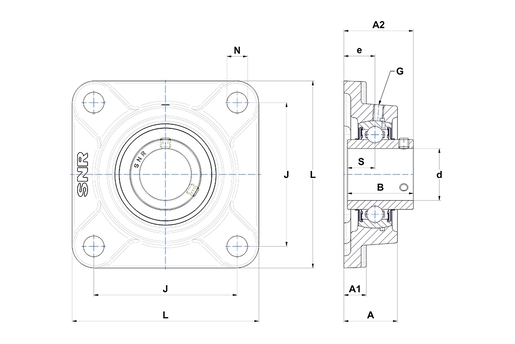

PRODUCT DEFINITION

A - Housing height 31 mm
A1 - Housing foot height / flange height 13 mm
A2 - Total height from mounting surface 40,2 mm
B - Width of Inner Ring 38,1 mm
d - Shaft diameter 31,75 mm
e - Distance mounting surface to bearing center 18 mm
G - Grease fitting M6x1
J - Mounting holes distance 83 mm
L - Housing width / diameter 108 mm
N - Mounting hole dimension 12 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 15,9 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 19,5 kN
C0 - Static load rating 11,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,09 kg
Recommended tightening torque for set screw 3,7 N-m
