UCF206-20T04 - SNR

UCF206-20T04

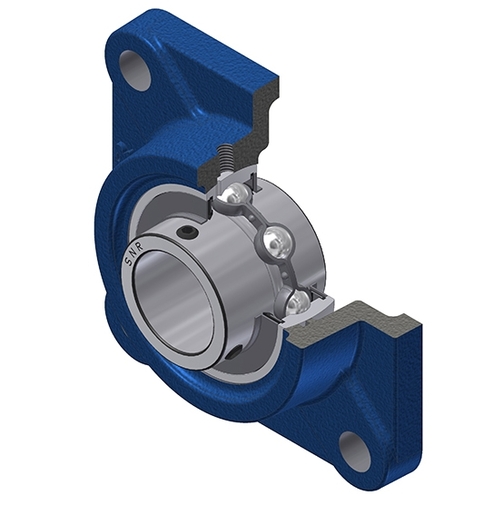

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC206-20G2T04 - F206
PLEASE LOGIN to add products to your basket
Contact us
Specs

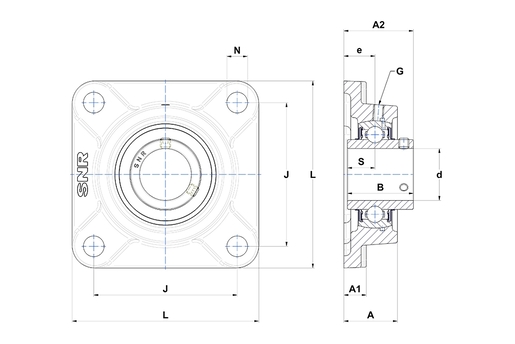

PRODUCT DEFINITION

A - Housing height 31 mm
A1 - Housing foot height / flange height 13 mm
A2 - Total height from mounting surface 40,2 mm
B - Width of Inner Ring 38,1 mm
d - Shaft diameter 31,75 mm
e - Distance mounting surface to bearing center 18 mm
G - Grease fitting M6x1
J - Mounting holes distance 83 mm
L - Housing width / diameter 108 mm
N - Mounting hole dimension 12 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 15,9 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 19,5 kN
C0 - Static load rating 11,2 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,09 kg
Recommended tightening torque for set screw 3,7 N-m
