UCF207-21T20 - SNR

UCF207-21T20

Grey cast housing, radial insert ball bearing with socket set screws,labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC207-21G2T20 - F207
PLEASE LOGIN to add products to your basket
Contact us
Specs

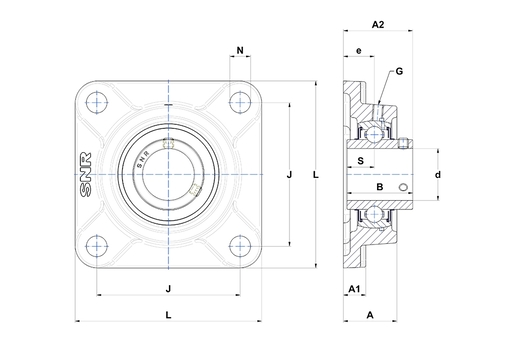

PRODUCT DEFINITION

A - Housing height 34 mm
A1 - Housing foot height / flange height 15 mm
A2 - Total height from mounting surface 44,4 mm
B - Width of Inner Ring 42,9 mm
d - Shaft diameter 33,338 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting M6x1
J - Mounting holes distance 92 mm
L - Housing width / diameter 117 mm
N - Mounting hole dimension 14 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 17,5 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 25,7 kN
C0 - Static load rating 15,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 1,54 kg
Recommended tightening torque for set screw 8 N-m
