UCF207-23L3CO - SNR

UCF207-23L3CO

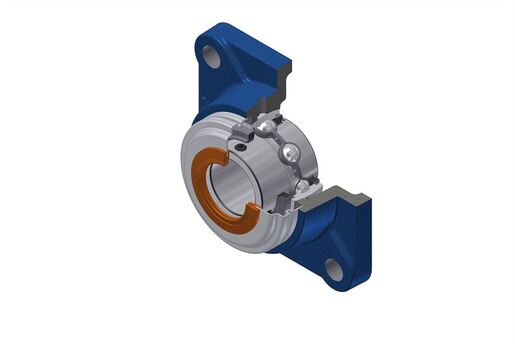

Grey cast housing, radial insert ball bearing with socket set screws,triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC207-23G2L3 - SCOU207-23 - F207N
PLEASE LOGIN to add products to your basket
Contact us
Specs

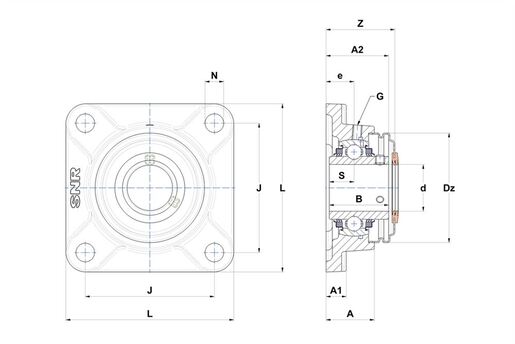

PRODUCT DEFINITION

A - Housing height 34 mm
A1 - Housing foot height / flange height 15 mm
A2 - Total height from mounting surface 44,4 mm
B - Width of Inner Ring 42,9 mm
d - Shaft diameter 36,513 mm
Dz - Outer diameter of cover 80 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting M6x1
J - Mounting holes distance 92 mm
L - Housing width / diameter 117 mm
N - Mounting hole dimension 14 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 17,5 mm
Z - Width over covers 48,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 25,7 kN
C0 - Static load rating 15,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,516 kg
Recommended tightening torque for set screw 8 N-m
