UCF208-25NL3 - SNR

UCF208-25NL3

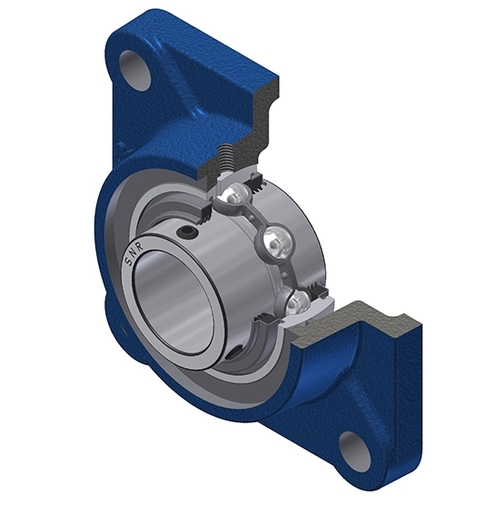

Grey cast housing, radial insert ball bearing with socket set screws,triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC208-25G2L3 - F208N
PLEASE LOGIN to add products to your basket
Contact us
Specs

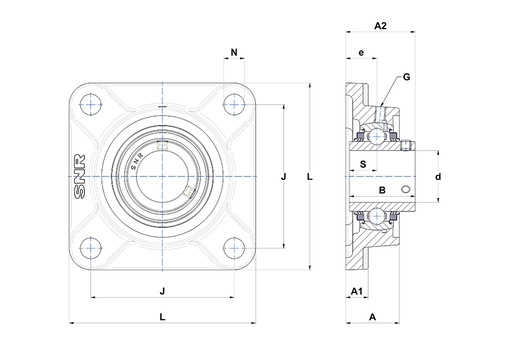

PRODUCT DEFINITION

A - Housing height 36 mm
A1 - Housing foot height / flange height 15 mm
A2 - Total height from mounting surface 51,2 mm
B - Width of Inner Ring 49,2 mm
d - Shaft diameter 39,688 mm
e - Distance mounting surface to bearing center 21 mm
G - Grease fitting M6x1
J - Mounting holes distance 102 mm
L - Housing width / diameter 130 mm
N - Mounting hole dimension 16 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 19 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 29,6 kN
C0 - Static load rating 18,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,88 kg
Recommended tightening torque for set screw 8 N-m
