Bearing units

UCFC203-11T04 - SNR

UCFC203-11T04

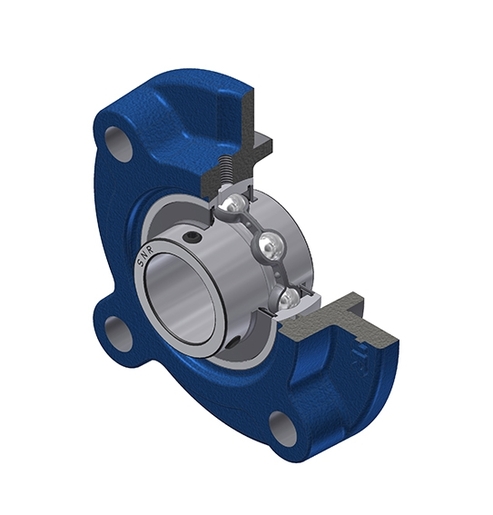

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

This kit contains the following reference(s)

Documentation

Product information

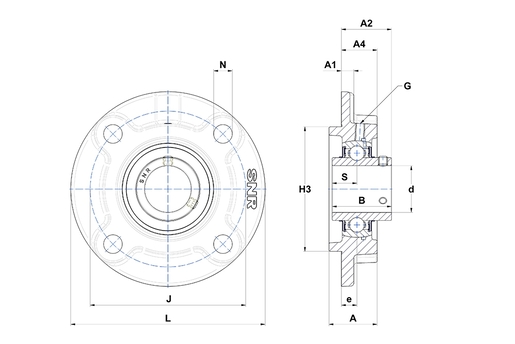

PRODUCT DEFINITION
BrandSNR
A - Housing height25,5 mm
A1 - Housing foot height / flange height6 mm
A2 - Total height from mounting surface28,3 mm
A4 - Housing height from mounting surface20,5 mm
B - Width of Inner Ring31 mm
d - Shaft diameter17,463 mm
e - Distance mounting surface to bearing center10 mm
G - Grease fittingM6x1
H3 - Centering dia62 mm
J - Mounting holes distance78 mm
L - Housing width / diameter100 mm
N - Mounting hole dimension12 mm
S - Distance front side/bearing centre12,7 mm
undefined
PRODUCT PERFORMANCE
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,68 kg
Recommended tightening torque for set screw3,7 N-m
