UCFE208L4CO - SNR

UCFE208L4CO

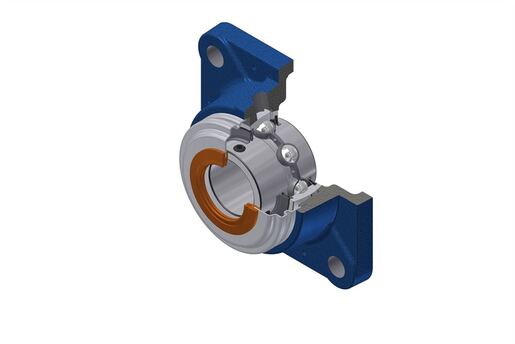

Grey cast housing, radial insert ball bearing with socket set screws,L4 sealing system

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC208G2L4 - SCO208-40 - FE208N
PLEASE LOGIN to add products to your basket
Contact us

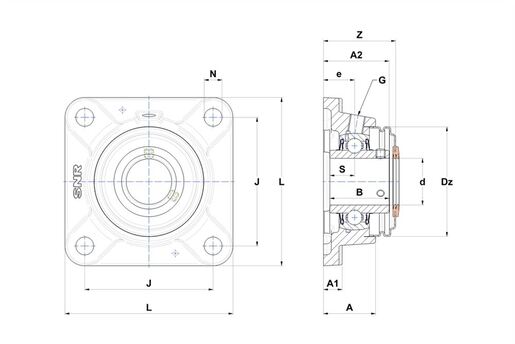

PRODUCT DEFINITION
BrandSNR
A - Housing height39,5 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface54,2 mm
B - Width of Inner Ring49,2 mm
d - Shaft diameter40 mm
Dz - Outer diameter of cover88 mm
e - Distance mounting surface to bearing center24 mm
G - Grease fittingR1/8"
J - Mounting holes distance101,5 mm
L - Housing width / diameter130 mm
N - Mounting hole dimension14 mm
S - Distance front side/bearing centre19 mm
Z - Width over covers58,4 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating29,6 kN
C0 - Static load rating18,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,112 kg
Recommended tightening torque for set screw11,5 N-m
