UCFE210-31NT20 - SNR

UCFE210-31NT20

Grey cast housing, radial insert ball bearing with socket set screws,labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC210-31G2T20 - FE210N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
A - Housing height44 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface60,6 mm
B - Width of Inner Ring51,6 mm
d - Shaft diameter49,213 mm
e - Distance mounting surface to bearing center28 mm
G - Grease fittingR1/8"
J - Mounting holes distance111 mm
L - Housing width / diameter143 mm
N - Mounting hole dimension18 mm
S - Distance front side/bearing centre19 mm

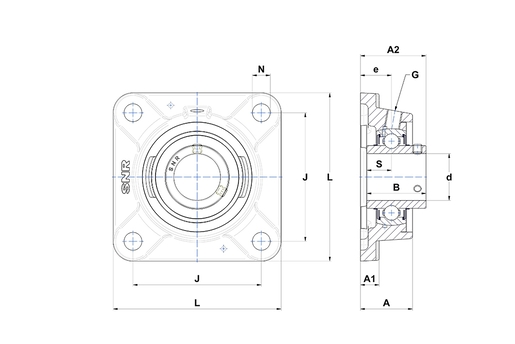

Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating35,1 kN
C0 - Static load rating23,2 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass2,55 kg
Recommended tightening torque for set screw16,8 N-m
