Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

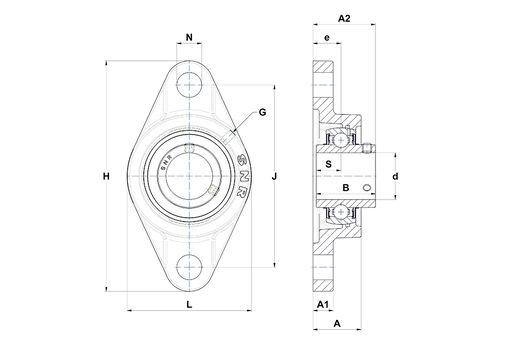

PRODUCT DIMENSIONS | |
|---|---|
| Housing height (A) | 56 mm |
| Housing foot height / flange height (A1) | 22 mm |
| Total height (Housing + Insert) from mouting surface (A2) | 78 mm |
| Width of IR (B) | 71 mm |
| Shaft dia (d) | 57,15 mm |
| Distance mounting surface - bearing center (e) | 33 mm |
| Grease fitting (G) | System.Collections.Generic.List`1[System.String] |
| Housing length, width or diameter (H) | 270 mm |
| Mounting hole distance (J) | 212 mm |
| Housing width / dia (L) | 160 mm |
| Mounting hole dimension (N) | System.Collections.Generic.List`1[System.String] |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 26 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 81,6 kN |
| Static load rating (C0) | 51,8 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 5,79 kg |
| Recommended tightening torque for set screw [Nm] | 27,1 N-m |
