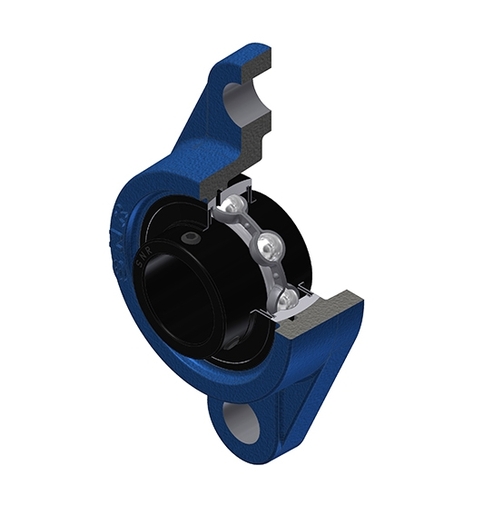

Grey cast housing, radial insert ball bearing with socket set screws,labyrinth seal, for high-temp. applications
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

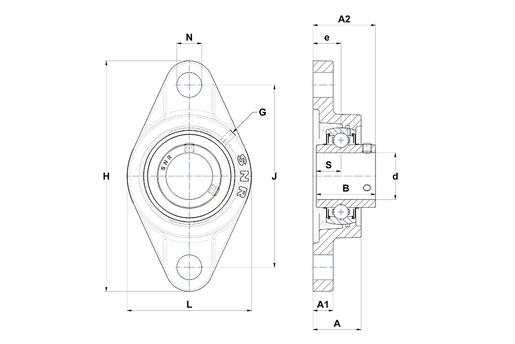

PRODUCT DIMENSIONS | |
|---|---|
| Housing height (A) | 61 mm |
| Housing foot height / flange height (A1) | 28 mm |
| Total height (Housing + Insert) from mouting surface (A2) | 81 mm |
| Width of IR (B) | 78 mm |
| Shaft dia (d) | 68,263 mm |
| Distance mounting surface - bearing center (e) | 36 mm |
| Grease fitting (G) | M10x1 |
| Housing length, width or diameter (H) | 315 mm |
| Mounting hole distance (J) | 250 mm |
| Housing width / dia (L) | 185 mm |
| Mounting hole dimension (N) | 35 mm |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 33 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 104,26 kN |
| Static load rating (C0) | 68 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 200 °C |
OTHER FEATURES | |
|---|---|
| Mass | 8,72 kg |
| Recommended tightening torque for set screw [Nm] | 27,1 N-m |
