UCP203-11NT20 - SNR

UCP203-11NT20

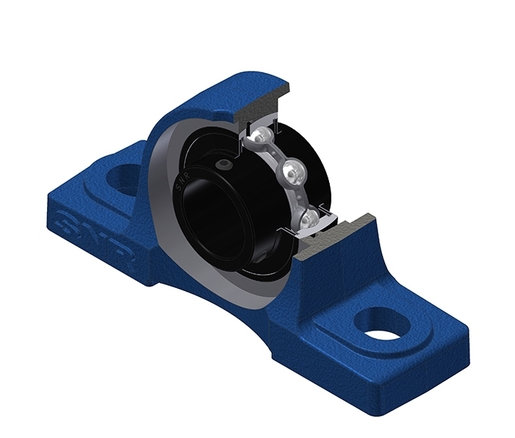

Grey cast housing, radial insert ball bearing with socket set screws,labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC203-11G2T20 - P204N
PLEASE LOGIN to add products to your basket
Contact us

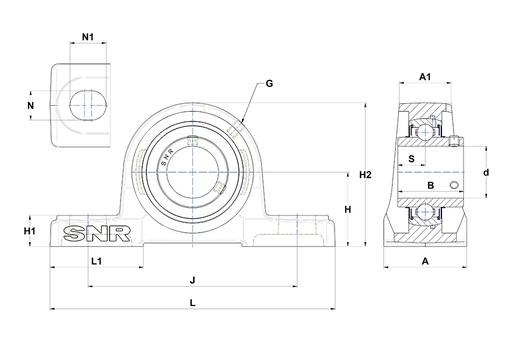

PRODUCT DEFINITION
BrandSNR
A - Housing width38 mm
A1 - Housing top width22 mm
B - Width of Inner Ring31 mm
d - Shaft diameter17,463 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.33,3 mm
H1 - Housing foot height15 mm
H2 - Housing height65 mm
J - Mounting holes distance95 mm
L - Housing length127 mm
L1 - Housing foot length42 mm
N - Mounting hole dimension13 mm
N1 - Mounting hole length19 mm
S - Distance front side/bearing centre12,7 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass0,68 kg
Recommended tightening torque for set screw3,7 N-m
