UCP205T04 - SNR

UCP205T04

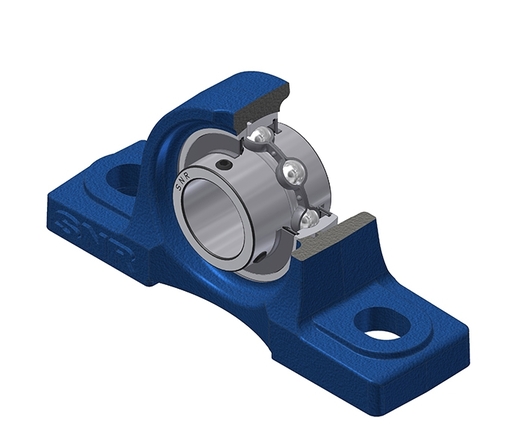

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s)- UC205G2T04- P205
PLEASE LOGIN to add products to your basket
Contact us

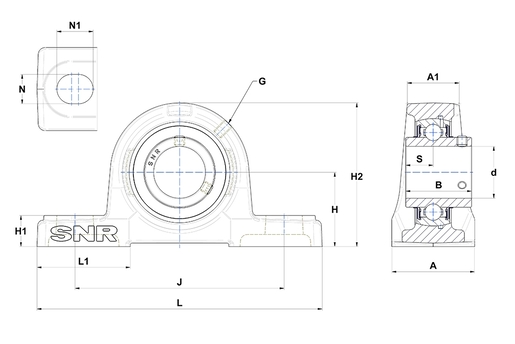

PRODUCT DEFINITION
BrandSNR
A - Housing width38 mm
A1 - Housing top width26 mm
B - Width of Inner Ring34 mm
d - Shaft diameter25 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.36,5 mm
H1 - Housing foot height16 mm
H2 - Housing height70 mm
J - Mounting holes distance105 mm
L - Housing length140 mm
L1 - Housing foot length42 mm
N - Mounting hole dimension13 mm
N1 - Mounting hole length19 mm
S - Distance front side/bearing centre14,3 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating14 kN
C0 - Static load rating7,88 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,81 kg
Recommended tightening torque for set screw5,5 N-m
