UCP211-35N - SNR

UCP211-35N

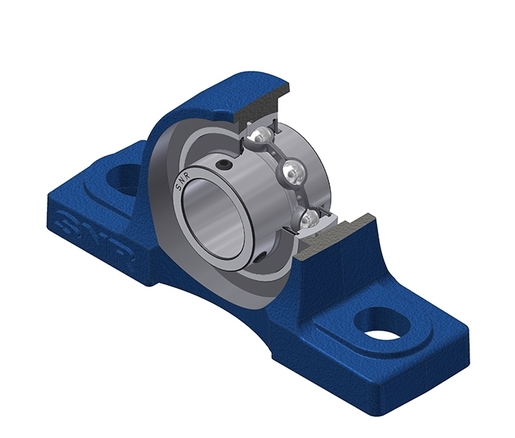

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC211-35G2 - P211N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

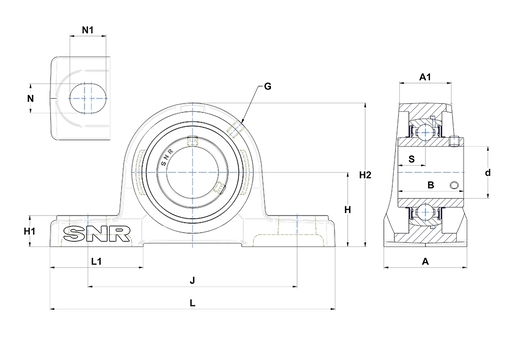

A - Housing width60 mm
A1 - Housing top width40 mm
B - Width of Inner Ring55,6 mm
d - Shaft diameter55,563 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.63,5 mm
H1 - Housing foot height22 mm
H2 - Housing height126 mm
J - Mounting holes distance171 mm
L - Housing length219 mm
L1 - Housing foot length70 mm
N - Mounting hole dimension20 mm
N1 - Mounting hole length25 mm
S - Distance front side/bearing centre22,2 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating43,55 kN
C0 - Static load rating29,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass3,5 kg
Recommended tightening torque for set screw16,8 N-m
