UCPE211-35N - SNR

UCPE211-35N

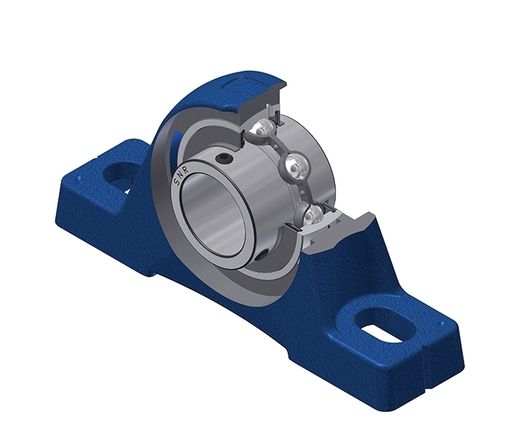

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s)- UC211-35G2- PE211N
PLEASE LOGIN to add products to your basket
Contact us

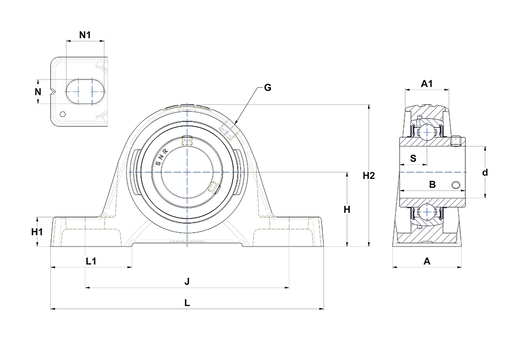

PRODUCT DEFINITION
BrandSNR
A - Housing width60 mm
A1 - Housing top width35 mm
B - Width of Inner Ring55,6 mm
d - Shaft diameter55,563 mm
G - Grease fittingR1/8"
H - Distance mounting base to centerline spheric. seating diam.63,5 mm
H1 - Housing foot height22,5 mm
H2 - Housing height124,5 mm
J - Mounting holes distance176 mm
L - Housing length222 mm
L1 - Housing foot length68 mm
N - Mounting hole dimension18 mm
N1 - Mounting hole length30 mm
S - Distance front side/bearing centre22,2 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating43,55 kN
C0 - Static load rating29,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass3,4 kg
Recommended tightening torque for set screw16,8 N-m
