UCPE212-39L3CC - SNR

UCPE212-39L3CC

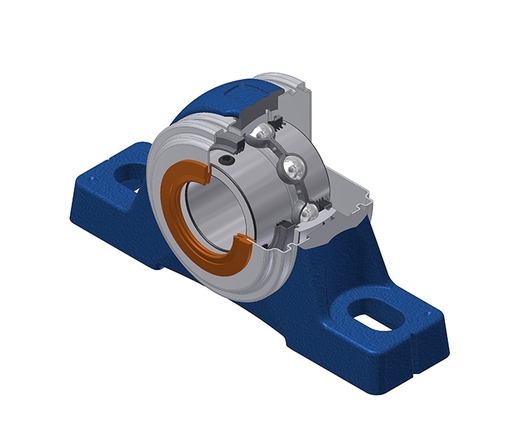

Grey cast housing, radial insert ball bearing with socket set screws,triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC212-39G2L3 - SCOU212-39 - SCC212 - PE212N
PLEASE LOGIN to add products to your basket
Contact us
Specs

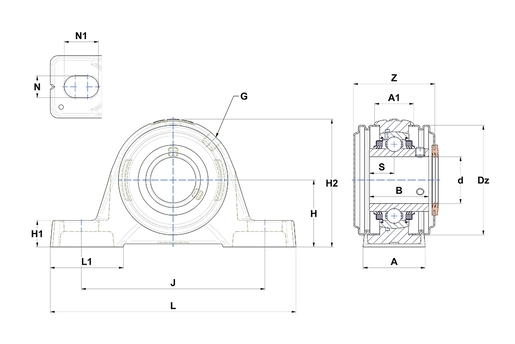

PRODUCT DIMENSIONS

Housing width (A) 60 mm
Housing top width (A1) 42 mm
Width of IR (B) 65,1 mm
Shaft dia (d) 61,913 mm
Outer dia of cover (Dz) 120 mm
Grease fitting (G) R1/8"
Distance mounting base to centerline spheric. seating diam. (H) 69,9 mm
Housing foot height (H1) 25 mm
Housing height (H2) 140 mm
Mounting hole distance (J) 190 mm
Housing length (L) 240 mm
Housing foot length (L1) 71 mm
Mounting hole dimension (N) 18 mm
Mounting hole length (N1) 28 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 25,4 mm
width over covers 92,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 52,5 kN
Static load rating (C0) 32,8 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 4,98 kg
Recommended tightening torque for set screw [Nm] 16,8 N-m
