UKFL206H - SNR

UKFL206H

Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

CAD file

Technical datasheet

KitThis kit contains the following reference(s) - UK206G2H - FL206
PLEASE LOGIN to add products to your basket
Contact us
Specs

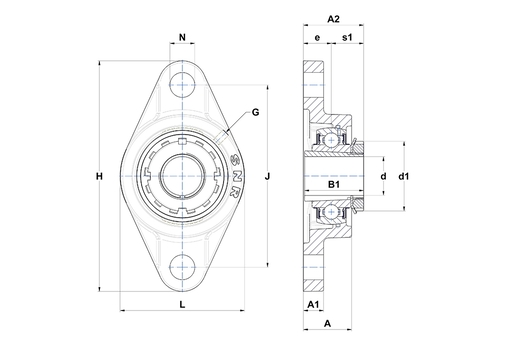

PRODUCT DIMENSIONS

Housing height (A) 31 mm
Housing foot height / flange height (A1) 13 mm
Total height (Housing + Insert) from mouting surface (A2) 38,5 mm
Width of IR (B) 25 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 38 mm
Shaft dia (d) 25 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 45 mm
Distance mounting surface - bearing center (e) 18 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 148 mm
Mounting hole distance (J) 117 mm
Housing width / dia (L) 80 mm
Mounting hole dimension (N) 16 mm
Distance nut - middle of bearing raceway (s1) 20,5 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 19,5 kN
Static load rating (C0) 11,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,95 kg
Adapter sleeve reference H2306
