Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

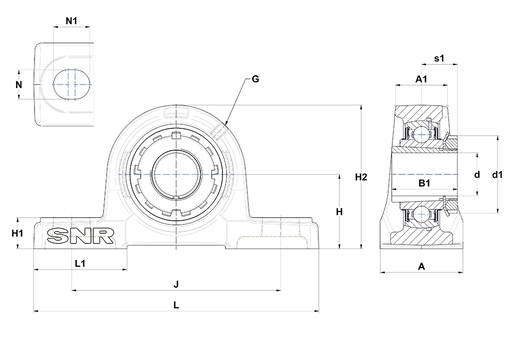

PRODUCT DIMENSIONS | |
|---|---|
| Housing width (A) | 60 mm |
| Housing top width (A1) | 40 mm |
| Width of IR (B) | 33 mm |
| Shaft dia (d) | 49,213 mm |
| Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) | 75 mm |
| Grease fitting (G) | M6x1 |
| Distance mounting base to centerline spheric. seating diam. (H) | 63,5 mm |
| Housing foot height (H1) | 22 mm |
| Housing height (H2) | 126 mm |
| Mounting hole distance (J) | 171 mm |
| Housing length (L) | 219 mm |
| Housing foot length (L1) | 70 mm |
| Mounting hole dimension (N) | 20 mm |
| Mounting hole length (N1) | 25 mm |
| Distance nut - middle of bearing raceway (s1) | 29 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 43,55 kN |
| Static load rating (C0) | 29,2 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 3,79 kg |
| Adapter sleeve reference | H2311-31 |
