Bearing units

UKP217-47H - SNR

UKP217-47H

Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

This kit contains the following reference(s)

Documentation

Product information

PRODUCT DEFINITION
BrandSNR

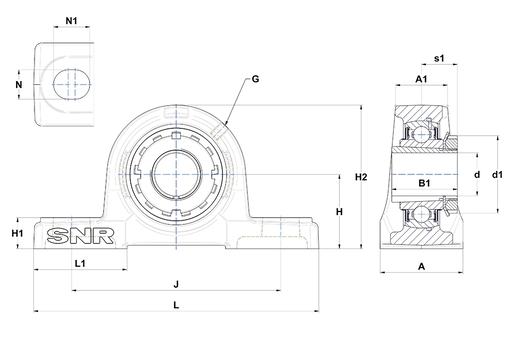

A - Housing width83 mm
A1 - Housing top width53 mm
B - Width of Inner Ring44 mm
d - Shaft diameter74,613 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve110 mm
G - Grease fittingM10x1
H - Distance mounting base to centerline spheric. seating diam.95,2 mm
H1 - Housing foot height32 mm
H2 - Housing height187 mm
J - Mounting holes distance247 mm
L - Housing length310 mm
L1 - Housing foot length96 mm
N - Mounting hole dimension25 mm
N1 - Mounting hole length31 mm
s1 - Distance nut to middle of bearing raceway40 mm
undefined
PRODUCT PERFORMANCE
C - Dynamic load rating83,2 kN
C0 - Static load rating63,8 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass11,32 kg
Adapter sleeve designationH2317-47
