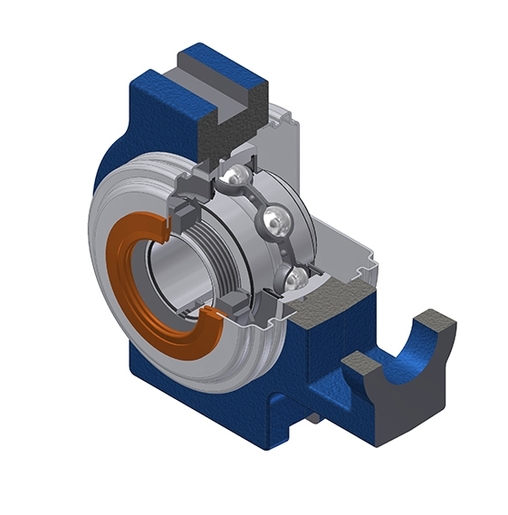

Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

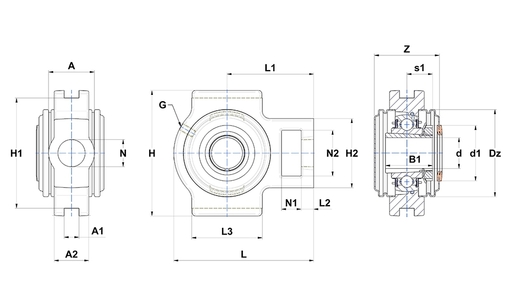

PRODUCT DIMENSIONS | |
|---|---|
| Housing width (A) | 70 mm |
| Width of location slot (A1) | 26 mm |
| Width over loc. slot flange(T/ST)/width at mount. hole(EHE)(A2) | 44 mm |
| Total height - frame + insert (A5) | 32 mm |
| Width of IR (B) | 36 mm |
| Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) | 65 mm |
| Shaft dia (d) | 60 mm |
| Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) | 85 mm |
| Outer dia of cover (Dz) | 132 mm |
| Grease fitting (G) | M6x1 |
| Housing length, width or diameter (H) | 167 mm |
| Distance between bottoms of location slots (H1) | 151 mm |
| Housing height / width (H2) | 111 mm |
| Housing length (L) | 224 mm |
| Distance from attachment end face to bearing centerline (L1) | 137 mm |
| Thickness of attachment end (L2) | 21 mm |
| Length of location slot (T/ST)/ guidance length (EHE) (L3) | 121 mm |
| Mounting hole dimension (N) | 41 mm |
| Length of attachment slot (N1) | 32 mm |
| Height of attachment slot (N2) | 70 mm |
| width over covers | 90,6 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 57,2 kN |
| Static load rating (C0) | 40 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 7,105 kg |
| Adapter sleeve reference | H2313 |
