USEHE206-20 - SNR

USEHE206-20

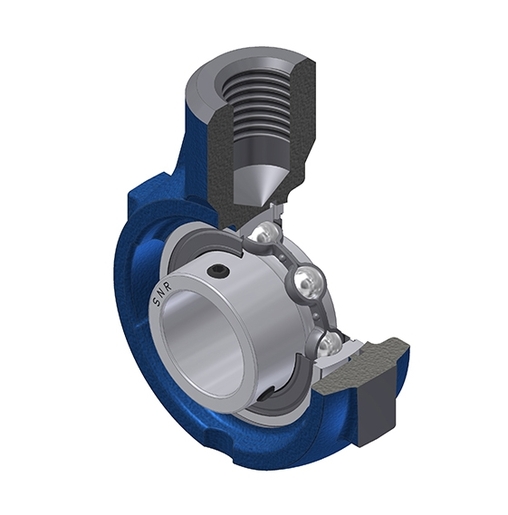

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US206-20G2 - EHE206
PLEASE LOGIN to add products to your basket
Contact us
Specs

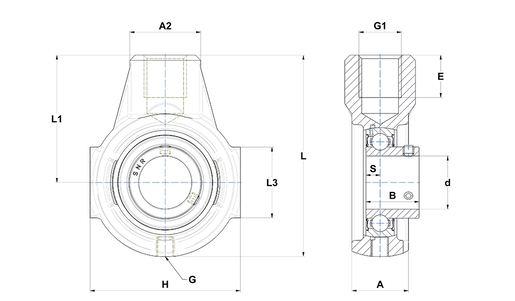

PRODUCT DIMENSIONS

Housing width (A) 32 mm
Width over loc. slot flange(T/ST)/width at mount. hole(EHE)(A2) 40 mm
Total height - frame + insert (A5) 22 mm
Width of IR (B) 30 mm
Shaft dia (d) 31,75 mm
Mounting hole thread depth (E) 24 mm
Grease fitting (G) R1/8"
Thread size (G1) M24
Housing length, width or diameter (H) 85 mm
Housing length (L) 114 mm
Distance from attachment end face to bearing centerline (L1) 72 mm
Length of location slot (T/ST)/ guidance length (EHE) (L3) 40 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 8 mm
Wrench size (SW) 3,175 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 19,5 kN
Static load rating (C0) 11,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,94 kg
Recommended tightening torque for set screw [Nm] 3,7 N-m
