USF208T04CC - SNR

USF208T04CC

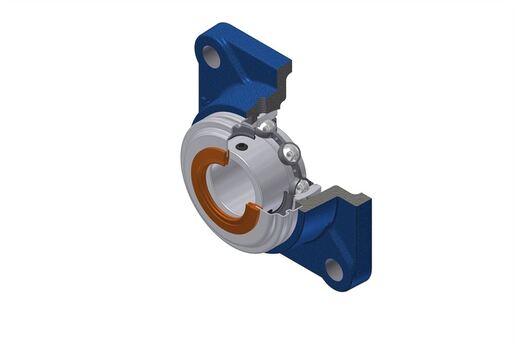

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

CAD file

Technical datasheet

KitThis kit contains the following reference(s) - US208G2T04
PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DIMENSIONS

Brand SNR
Width of IR (B) 34 mm
Housing height (A) 36 mm
Housing foot height / flange height (A1) 15 mm
Total height (Housing + Insert) from mouting surface (A2) 46 mm
Shaft dia (d) 40 mm
width over covers 54,9 mm
Outer dia of cover (Dz) 88 mm
Distance mounting surface - bearing center (e) 21 mm
Grease fitting (G) M6x1
Mounting hole distance (J) 102 mm
Housing width / dia (L) 130 mm
Mounting hole dimension (N) 16 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 9 mm
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 29,6 kN
Static load rating (C0) 18,2 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,908 kg
Recommended tightening torque for set screw [Nm] 11,5 N-m
