USF209T20CC - SNR

USF209T20CC

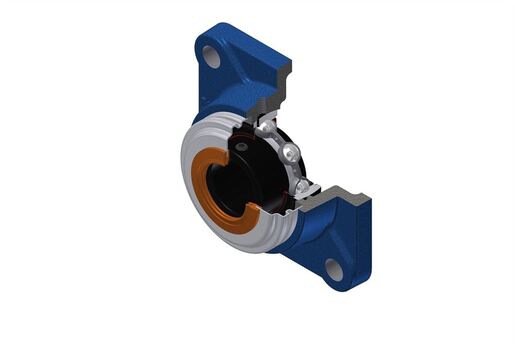

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Téléchargement

Fiche technique

KitCe kit contient les articles suivants - US209G2T20
Contact us
Spécification

PRODUCT DIMENSIONS

Housing height (A) 38 mm
Housing foot height / flange height (A1) 16 mm
Total height (Housing + Insert) from mouting surface (A2) 53 mm
Width of IR (B) 41,2 mm
Shaft dia (d) 45 mm
Outer dia of cover (Dz) 95 mm
Distance mounting surface - bearing center (e) 22 mm
Grease fitting (G) M6x1
Mounting hole distance (J) 105 mm
Housing width / dia (L) 137 mm
Mounting hole dimension (N) 16 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 10,2 mm
width over covers 56,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 31,85 kN
Static load rating (C0) 20,8 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 2,15 kg
Recommended tightening torque for set screw [Nm] 11,5 N-m
