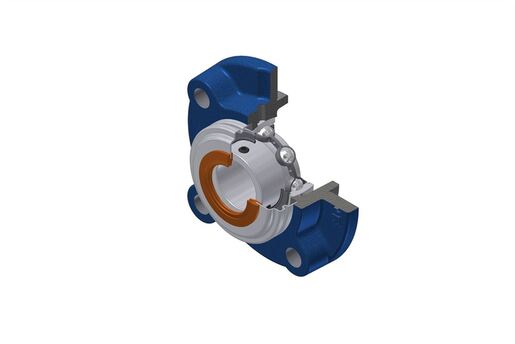

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

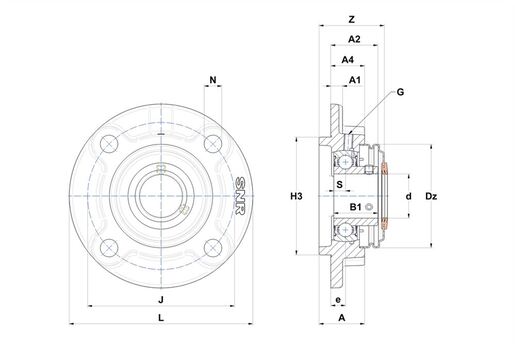

PRODUCT DIMENSIONS | |
|---|---|
| Housing height (A) | 25,5 mm |
| Housing foot height / flange height (A1) | 6 mm |
| Total height (Housing + Insert) from mouting surface (A2) | 28 mm |
| Housing height from mounting surface (A4) | 20,5 mm |
| Width of IR (B) | 25 mm |
| Shaft dia (d) | 19,05 mm |
| Outer dia of cover (Dz) | 54 mm |
| Distance mounting surface - bearing center (e) | 10 mm |
| Grease fitting (G) | M6x1 |
| Centering dia (H3) | 62 mm |
| Mounting hole distance (J) | 78 mm |
| Housing width / dia (L) | 100 mm |
| Mounting hole dimension (N) | 12 mm |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 7 mm |
| width over covers | 37 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 12,8 kN |
| Static load rating (C0) | 6,65 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 0,649 kg |
| Recommended tightening torque for set screw [Nm] | 3,7 N-m |
