USFE201T04CO - SNR

USFE201T04CO

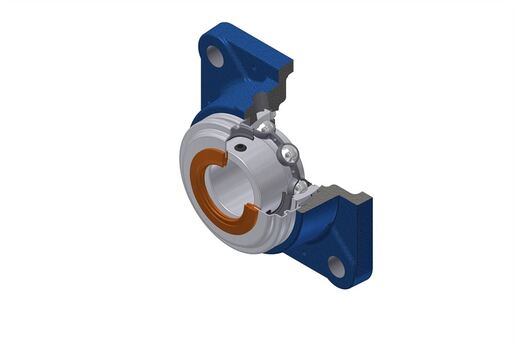

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - US201G2T04 - SCO201-12 - FE203N
PLEASE LOGIN to add products to your basket
Contact us
Specs

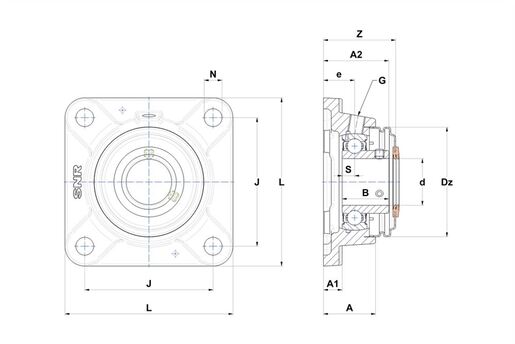

PRODUCT DEFINITION

A - Housing height 29,5 mm
A1 - Housing foot height / flange height 10 mm
A2 - Total height from mounting surface 33 mm
B - Width of Inner Ring 22 mm
d - Shaft diameter 12 mm
Dz - Outer diameter of cover 46 mm
e - Distance mounting surface to bearing center 17 mm
G - Grease fitting R1/8"
J - Mounting holes distance 63,5 mm
L - Housing width / diameter 86 mm
N - Mounting hole dimension 11,5 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 6 mm
Z - Width over covers 41,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 9,55 kN
C0 - Static load rating 4,78 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,454 kg
Recommended tightening torque for set screw 3,5 N-m
