USFL208-24NT20 - SNR

USFL208-24NT20

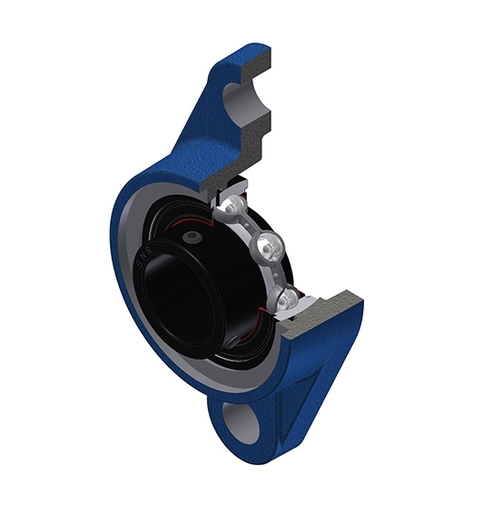

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US208-24G2T20 - FL208N
PLEASE LOGIN to add products to your basket
Contact us
Specs

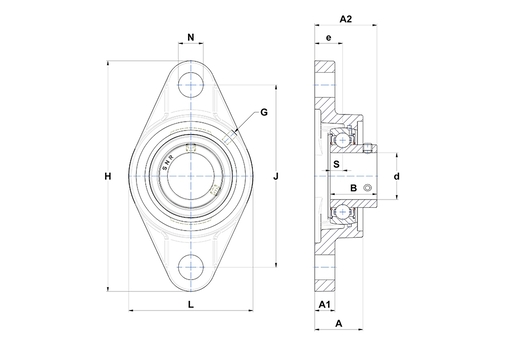

PRODUCT DIMENSIONS

Housing height (A) 36 mm
Housing foot height / flange height (A1) 14 mm
Total height (Housing + Insert) from mouting surface (A2) 46 mm
Width of IR (B) 34 mm
Shaft dia (d) 38,1 mm
Distance mounting surface - bearing center (e) 21 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 175 mm
Mounting hole distance (J) 144 mm
Housing width / dia (L) 100 mm
Mounting hole dimension (N) 16 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 9 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 32,6 kN
Static load rating (C0) 19,9 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 1,42 kg
Recommended tightening torque for set screw [Nm] 8 N-m
