USFL211-32NT04 - SNR

USFL211-32NT04

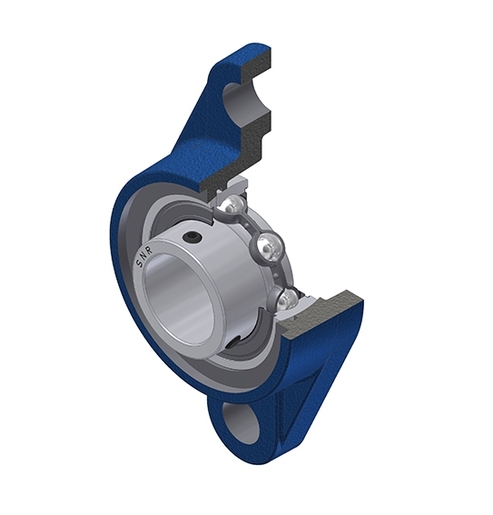

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US211-32G2T04 - FL211N
PLEASE LOGIN to add products to your basket
Contact us
Specs

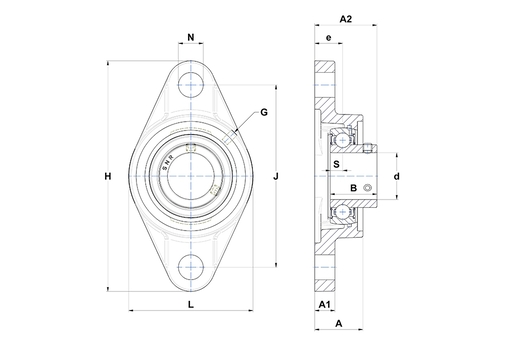

PRODUCT DIMENSIONS

Housing height (A) 43 mm
Housing foot height / flange height (A1) 18 mm
Total height (Housing + Insert) from mouting surface (A2) 58,5 mm
Width of IR (B) 45,3 mm
Shaft dia (d) 50,8 mm
Distance mounting surface - bearing center (e) 25 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 224 mm
Mounting hole distance (J) 184 mm
Housing width / dia (L) 130 mm
Mounting hole dimension (N) 19 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 11,8 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 43,55 kN
Static load rating (C0) 29,2 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 2,91 kg
Recommended tightening torque for set screw [Nm] 8 N-m
