USP205-16CC - SNR

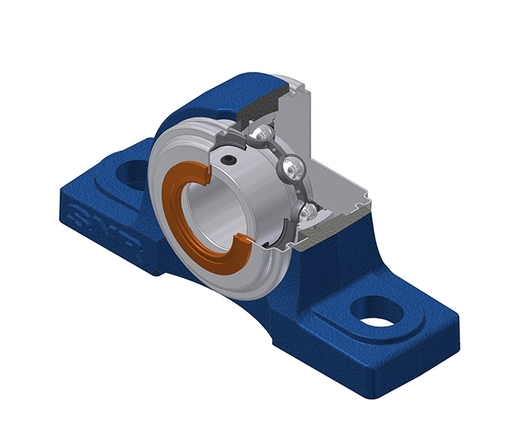

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.


Technical datasheet

KitThis kit contains the following reference(s)- US205-16G2- SCC205- SCOU205-16- P205N
PLEASE LOGIN to add products to your basket
Contact us

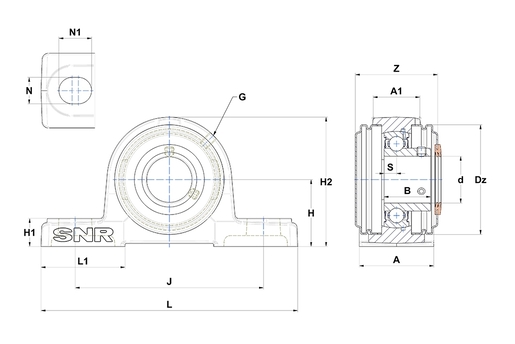

A - Housing width38 mm
A1 - Housing top width26 mm
B - Width of Inner Ring27 mm
d - Shaft diameter25,4 mm
Dz - Outer diameter of cover60 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.36,5 mm
H1 - Housing foot height16 mm
H2 - Housing height70 mm
J - Mounting holes distance105 mm
L - Housing length140 mm
L1 - Housing foot length42 mm
N - Mounting hole dimension13 mm
N1 - Mounting hole length19 mm
S - Distance front side/bearing centre7,5 mm
Z - Width over covers48 mm
Product classification image
C - Dynamic load rating14 kN
C0 - Static load rating7,88 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
Mass0,831 kg
Recommended tightening torque for set screw3,7 N-m
