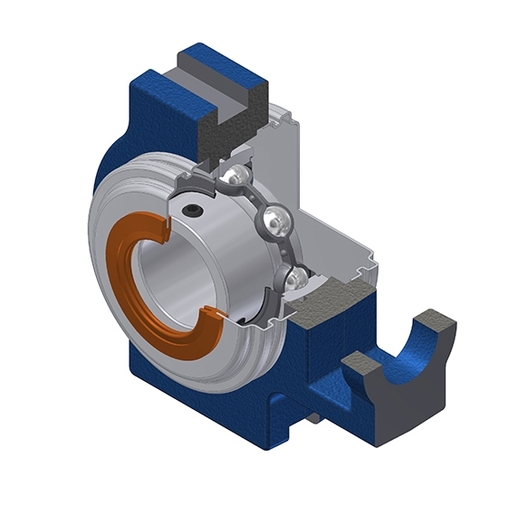

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications.

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.


Technical datasheet

KitThis kit contains the following reference(s) - US206G2T04 - T206N - SCO206-30
PLEASE LOGIN to add products to your basket
Contact us

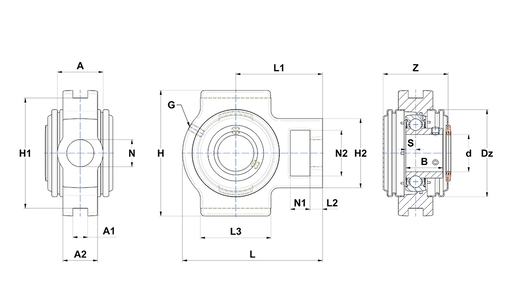

Housing width (A) 37 mm
Width of location slot (A1) 12 mm
Width over loc. slot flange(T/ST)/width at mount. hole(EHE)(A2) 28 mm
Total height - frame + insert (A5) 22 mm
Width of IR (B) 30 mm
Shaft dia (d) 30 mm
Outer dia of cover (Dz) 70 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 102 mm
Distance between bottoms of location slots (H1) 89 mm
Housing height / width (H2) 56 mm
Housing length (L) 113 mm
Distance from attachment end face to bearing centerline (L1) 70 mm
Thickness of attachment end (L2) 10 mm
Length of location slot (T/ST)/ guidance length (EHE) (L3) 57 mm
Mounting hole dimension (N) 22 mm
Length of attachment slot (N1) 16 mm
Height of attachment slot (N2) 37 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 8 mm
Wrench size (SW) 3 mm
width over covers 35,6 mm
Brand SNR
Product classification image


Dynamic load rating (C) 19,5 kN
Static load rating (C0) 11,2 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C


Mass 1,214 kg
Recommended tightening torque for set screw [Nm] 5,5 N-m
