UST207-23T20 - SNR

UST207-23T20

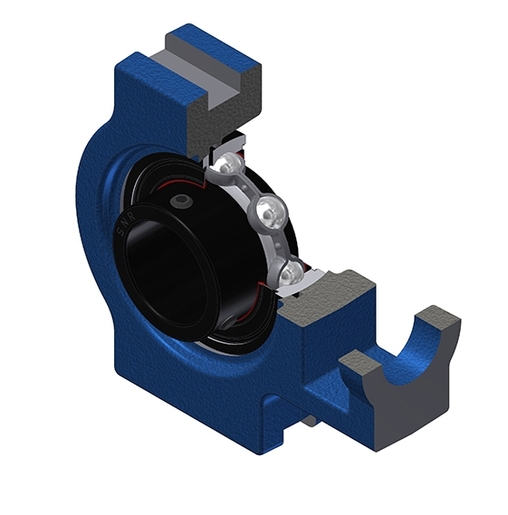

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US207-23G2T20 - T207
PLEASE LOGIN to add products to your basket
Contact us
Specs

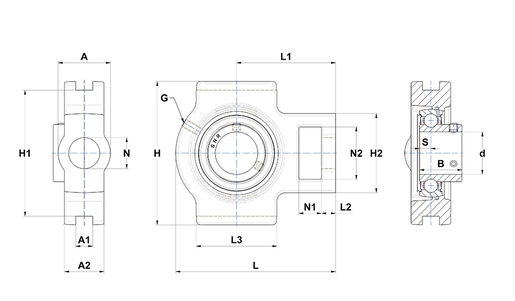

PRODUCT DIMENSIONS

Housing width (A) 37 mm
Width of location slot (A1) 12 mm
Width over loc. slot flange(T/ST)/width at mount. hole(EHE)(A2) 30 mm
Total height - frame + insert (A5) 23,5 mm
Width of IR (B) 32 mm
Shaft dia (d) 36,513 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 102 mm
Distance between bottoms of location slots (H1) 89 mm
Housing height / width (H2) 64 mm
Housing length (L) 129 mm
Distance from attachment end face to bearing centerline (L1) 78 mm
Thickness of attachment end (L2) 13 mm
Length of location slot (T/ST)/ guidance length (EHE) (L3) 64 mm
Mounting hole dimension (N) 22 mm
Length of attachment slot (N1) 16 mm
Height of attachment slot (N2) 37 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 8,5 mm
Wrench size (SW) 3,969 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 25,7 kN
Static load rating (C0) 15,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 1,47 kg
Recommended tightening torque for set screw [Nm] 8 N-m
