ZLG 308 AA

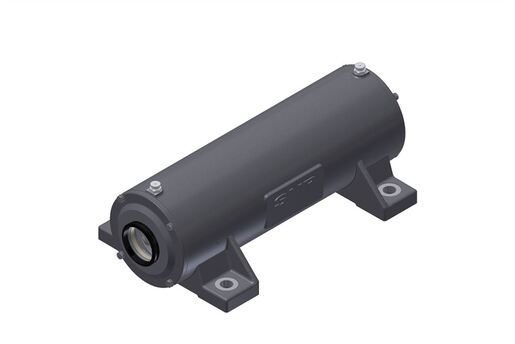

Two bearing housing, made of grey cast, for grease lubrication

Multiple bearing housings, that allow the usage of different bearing combinations.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - 6308.C3 - ASG 6308 - V-40S - Fl 9
PLEASE LOGIN to add products to your basket
Contact us
Specs

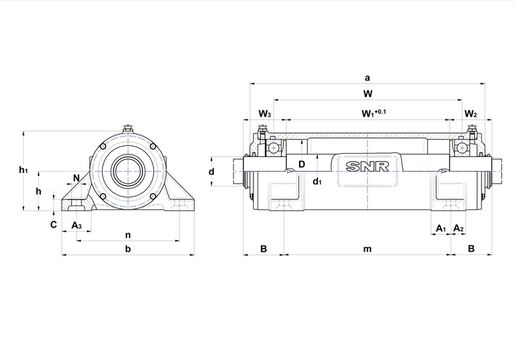

PRODUCT DEFINITION

d - Shaft diameter 40 mm
d1 - Shaft diameter between bearings 50 mm
a - Housing length 330 mm
b - Housing foot width 190 mm
c - Housing foot height 18 mm
h - Bearing center height 60 mm
h1 - Housing height 121 mm
m - Mounting hole/punches distance (length) 225 mm
n - Mounting hole distance (width) 150 mm
N - Mounting hole diameter 15 mm
B - Distance mounting hole to shaft step 65 mm
W - Bearing distance 257 mm
W1 - Central shaft length 214 mm
W2 - Right shaft end length 69,5 mm
A1 - Foot width (for ZLG, bore inner side width) 36 mm
A2 - ZLG foot width beside bore outer side 26 mm
A3 - ZLG foot width 40 mm
D - Bearing seat diameter 90 mm
Mass 12 kg
Material of Housing grey cast
Initial grease quantity 103 cm³
Brand SNR
Product classification image

ASSOCIATED COMPONENTS - OPTION

O-ring (optional) 90x4

BOLTS

G - Fixing bolts M12
Recommended torque fixing bolts 65 N-m
Cover bolts M6x25
Recommended torque cover bolts 7 N-m
