ZLG 311 AA - SNR

ZLG 311 AA

Two bearing housing, made of grey cast, for grease lubrication

Multiple bearing housings, that allow the usage of different bearing combinations.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - 6311C3 - Fl 12 - ASG 6311 - V-55S
PLEASE LOGIN to add products to your basket
Contact us
Specs

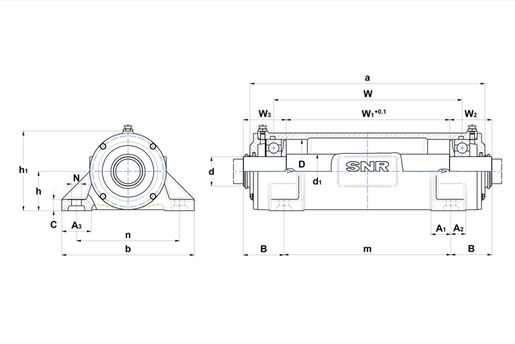

PRODUCT DEFINITION

d - Shaft diameter 55 mm
d1 - Shaft diameter between bearings 65 mm
a - Housing length 433 mm
b - Housing foot width 270 mm
c - Housing foot height 23 mm
h - Bearing center height 80 mm
h1 - Housing height 158 mm
m - Mounting hole/punches distance (length) 300 mm
n - Mounting hole distance (width) 210 mm
N - Mounting hole diameter 20 mm
B - Distance mounting hole to shaft step 79 mm
W - Bearing distance 336,5 mm
W1 - Central shaft length 287,5 mm
W2 - Right shaft end length 84 mm
A1 - Foot width (for ZLG, bore inner side width) 40 mm
A2 - ZLG foot width beside bore outer side 30 mm
A3 - ZLG foot width 60 mm
D - Bearing seat diameter 120 mm
Mass 25 kg
Material of Housing grey cast
Initial grease quantity 224 cm³
Brand SNR
Product classification image

ASSOCIATED COMPONENTS - OPTION

O-ring (optional) 120x4

BOLTS

G - Fixing bolts M16
Recommended torque fixing bolts 150 N-m
Cover bolts M6x25
Recommended torque cover bolts 7 N-m
