ZLG 313 AB - SNR

ZLG 313 AB

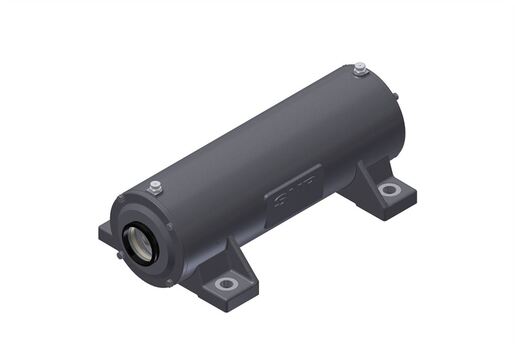

Two bearing housing, made of grey cast, for grease lubrication

Multiple bearing housings, that allow the usage of different bearing combinations.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - 6313C3 - NU 313 EG15 C3 - V-75S - Fl 17
PLEASE LOGIN to add products to your basket
Contact us
Specs

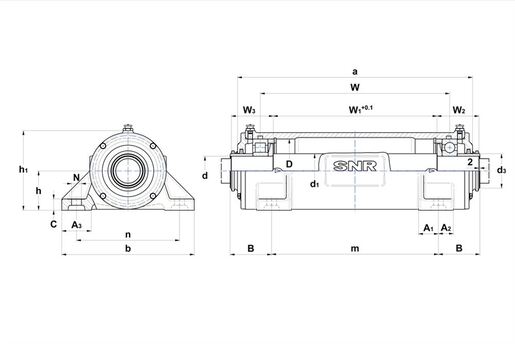

PRODUCT DEFINITION

d - Shaft diameter 65 mm
d1 - Shaft diameter between bearings 75 mm
d3 - Outer diameter sleeve 75 mm
a - Housing length 503 mm
b - Housing foot width 290 mm
c - Housing foot height 25 mm
h - Bearing center height 95 mm
h1 - Housing height 187 mm
m - Mounting hole/punches distance (length) 360 mm
n - Mounting hole distance (width) 230 mm
N - Mounting hole diameter 20 mm
B - Distance mounting hole to shaft step 87 mm
W - Bearing distance 404,5 mm
W1 - Central shaft length 350,5 mm
W2 - Right shaft end length 91,5 mm
A1 - Foot width (for ZLG, bore inner side width) 45 mm
A2 - ZLG foot width beside bore outer side 35 mm
A3 - ZLG foot width 60 mm
D - Bearing seat diameter 140 mm
Mass 33 kg
Material of Housing grey cast
Initial grease quantity 333 cm³
Brand SNR
Product classification image

ASSOCIATED COMPONENTS - OPTION

O-ring (optional) 140x7

BOLTS

G - Fixing bolts M16
Recommended torque fixing bolts 150 N-m
Cover bolts M8x25
Recommended torque cover bolts 17 N-m
