Scheda tecnica
Specifica

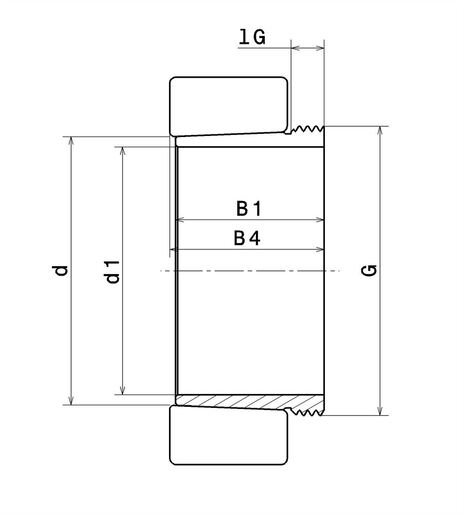

CARATTTERISTICHE TECNICHE | |
|---|---|
| d1 | 70 mm |
| d | 75 mm |
| B1 | 68 mm |
| B4 | 72 mm |
| G | M80X2 |
| IG | 12 mm |
| Designation of the associated nut | KM16 |
| Designation of the associated blocking device | MB14 |
| Designation of the nut | KM14 |
| Associated bearing | 22315, 2315 |
| Designation of the associated hydraulic nut | HMV16 EBF |
| Tipo di alesaggio | Tapered 1:12 |
| Peso | 0,48 kg |
| Marchio | SNR |
