Dane techniczne
Specyfikacja

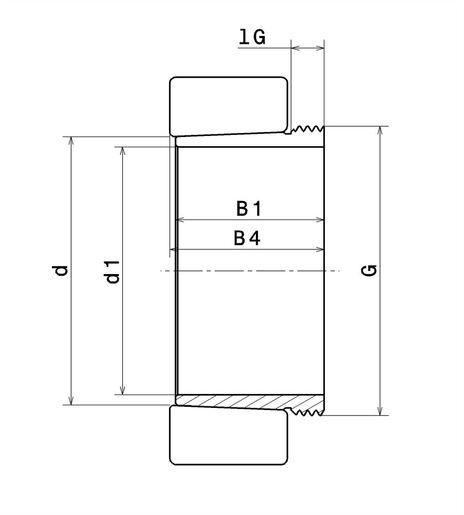

WYMIARY PRODUKTU | |
|---|---|
| d1 | 125 mm |
| d | 130 mm |
| B1 | 78 mm |
| B4 | 82 mm |
| G | M140X2 |
| IG | 12 mm |
| Designation of the associated nut | KM28 |
| Designation of the associated blocking device | MB24 |
| Designation of the nut | KM24 |
| Associated bearing | 22226, 23126 |
| Designation of the associated hydraulic nut | HMV28 EBF |
| Rodzaj otworu | Tapered 1:12 |
| Waga | 1,08 kg |
| Marka | SNR |
