Dane techniczne
Specyfikacja

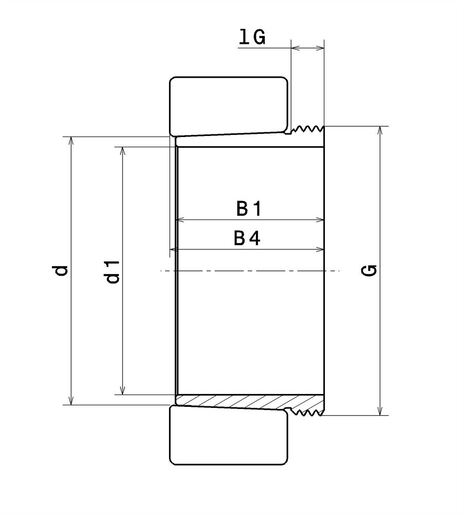

WYMIARY PRODUKTU | |
|---|---|
| d1 | 105 mm |
| d | 110 mm |
| B1 | 63 mm |
| B4 | 67 mm |
| G | M120X2 |
| IG | 12 mm |
| Designation of the associated nut | KM24 |
| Designation of the associated blocking device | MB21 |
| Designation of the nut | KM21 |
| Associated bearing | 21322, 1322, 2222 |
| Designation of the associated hydraulic nut | HMV24 EBF |
| Rodzaj otworu | Tapered 1:12 |
| Waga | 0,71 kg |
| Marka | SNR |
