Bucha de desmontagem

AOH3052 - SNR

AOH3052

Documentation

Product information

CARACTERÍSTICAS TÉCNICAS
MarcaSNR

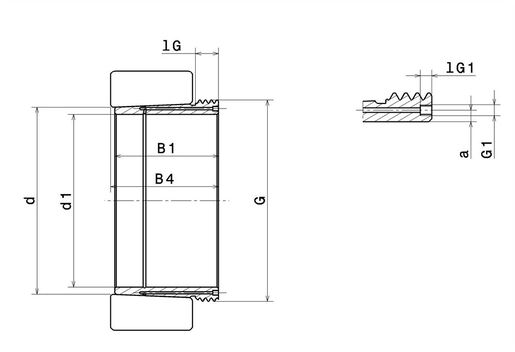

d1 - Sleeve bore diameter240 mm
d - Internal diameter260 mm
B1 - Sleeve length128 mm
B4 - Overall dismantling length135 mm
G - Thread designationTr280X4
lG - Sleeve thread length23 mm
G1 - Designation of tapping holes for oil injectionG1/4
lG1 - Tapping length of oil injection holes15 mm
a - Distance to bore of oil injection hole9 mm
Peso10,7 kg
undefined
CARACTERÍSTICAS TÉCNICAS
Associated bearing23052
Tipo de diâmetroConique 1:12
CROSS SELLING
Designation of the associated nutHM56T
Designation of the associated blocking deviceMB48
Designation of the nutHM48T
Designation of the associated hydraulic nutHMV56 EBF
