BBERS30LAUU - SNR

BBERS30LAUU

Flanged ball bushings are a useful addition to the standard ball bushings. The integrated flange design enables a more efficient arrangement of the housing or mounting holes. The flanged ball bushings are economical, because fewer components are required and altogether the installation is easier. The replacement of the ball bushings is easier.

Downloads

arquivo CAD

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
Especificações

CARACTERÍSTICAS TÉCNICAS

Design type BBER
Ball bushings category Flange type ball bushings
Marca SNR
Standard ISO dimension
Number of seals 2
Material outer cylinder or steel segments X105CrMo17
Material Cage X5CrNi18-10
Grease filled no

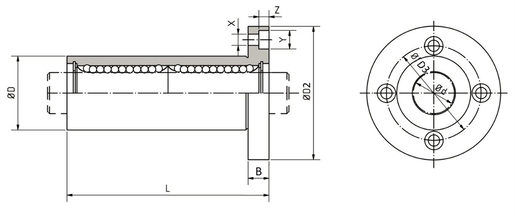

d 30 mm
Internal diameter tolerance (d) 0,013/-0,002
ØD 47 mm
External diameter tolerance (D) 0/-0,019
Length (L) 123 mm
Length tolerance (L) 0,3/-0,3
B 10 mm
ØD2 76 mm
ØD3 62 mm
X 6,6 mm
Y 11 mm
Z 6,1 mm
Maximum eccentricity 17000 mm
Number of ball rows 6
Peso 0,815 kg
Product classification image

DESEMPENHO

Cmin 2600000 kN
Cmax 3328000 kN
C0min 5490000 kN
C0max 7027000 kN
Permissible static Moment My 78 N/m
Temperatura mín (Tmin) -20 °C
Temperatura máx. de operação (Tmax) 140 °C
