Bucha de agulhas, extremidade fechada

BK1412 - NTN

BK1412

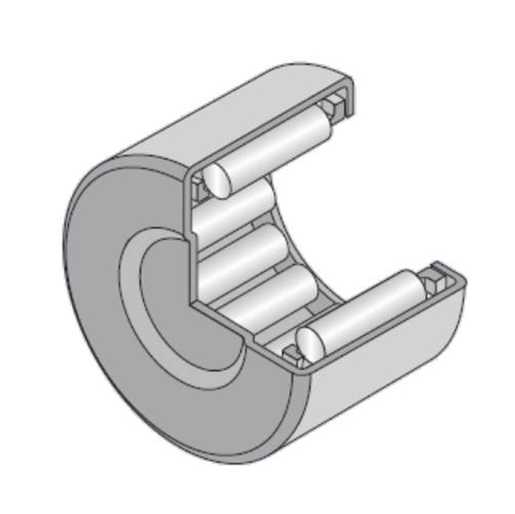

Rolamento de agulha, bucha de agulha, extremidade fechada

Documentation

Product information

CARACTERÍSTICAS TÉCNICAS
MarcaNTN

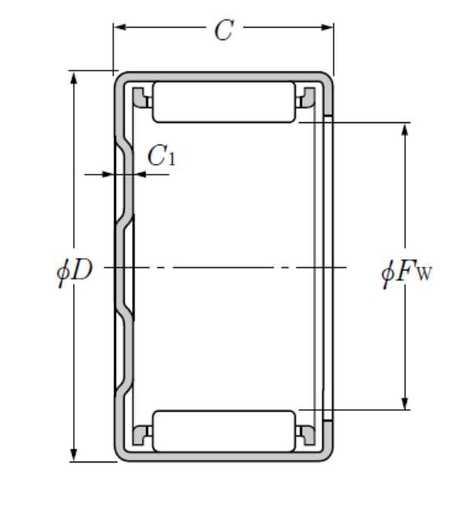

Fw - Under rollers diameter14 mm
D - External diameter20 mm
C - Width of bearing, drawn cup or outer ring12 mm
C1 - Max drawn cup closed end thickness2,7 mm
Furo de lubrificação no anel externoNon/No
Referência anel internoIR10X14X13
Peso0,012 kg
undefined
DESEMPENHO
Cr - Dynamic load rating7,2 kN
C0r - Static load rating8,5 kN
N lim - Grease lubrication limit speed11000 tr/min
N lim - Oil lubrication limit speed17000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
