BK2016

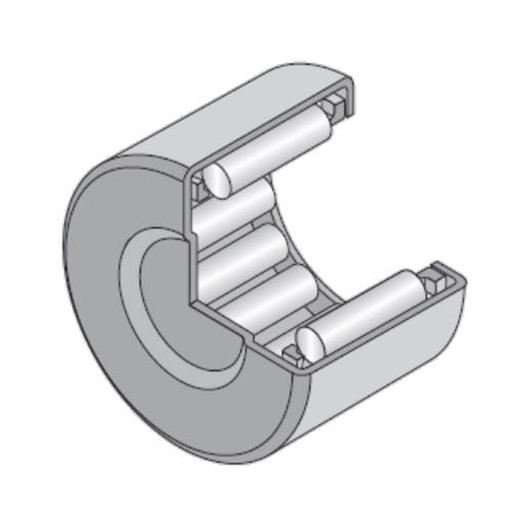

Rolamento de agulha, bucha de agulha, extremidade fechada

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN

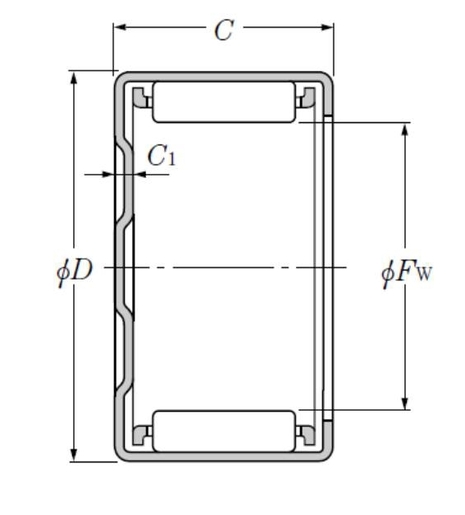

Fw - Under rollers diameter20 mm
D - External diameter26 mm
C - Width of bearing, drawn cup or outer ring16 mm
C1 - Max drawn cup closed end thickness2,7 mm
Furo de lubrificação no anel externoNão
Referência anel internoIR17X20X16.5
Peso0,022 kg
Product classification image
DESEMPENHO
Cr - Dynamic load rating13 kN
C0r - Static load rating20,1 kN
Nlim - Grease lubrication limit speed8000 tr/min
Nlim - Oil lubrication limit speed12000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
