Corpo fundido cinzento,rolamentos de esferas com inserção radial com anel de trava excêntrico,junta de vedação com base simples, para aplicações em baixa temperatura.

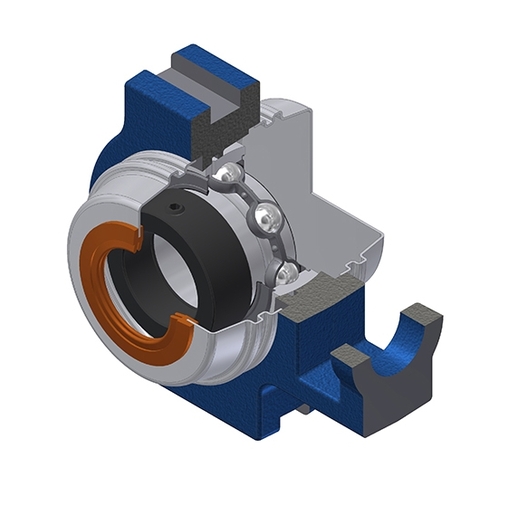

Na figura, os mancais são apresentados com uma tampa aberta e outra fechada. O produto que você escolheu é fornecido com duas tampas abertas.
Mancais autoalinháveis com diversas opções de fixação e alojamentos feitos de ferro fundido, aço inoxidável ou plástico.
Folha de dados técnica
Especificações

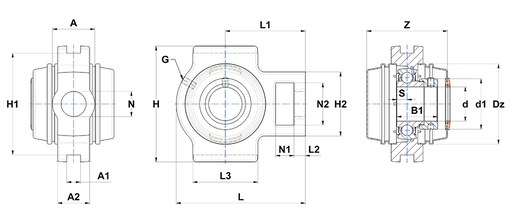

CARACTERÍSTICAS TÉCNICAS | |
---|---|
A - Housing width | 32 mm |
A1 - Width of location slot | 12 mm |
A2 - Width over loc. slot flange(T/ST)/width at mount. hole(EHE) | 21 mm |
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 30,9 mm |
d - Shaft diameter | 20 mm |
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 32,4 mm |
Dz - Outer diameter of cover | 54 mm |
G - Grease fitting | M6x1 |
H - Housing length, width or diameter | 89 mm |
H1 - Distance between bottoms of location slots | 76 mm |
H2 - Housing height / width | 51 mm |
L - Housing length | 94 mm |
L1 - Distance attachment end face to bearing centerline | 61 mm |
L2 - Thickness of attachment end | 10 mm |
L3 - Length of guidance slot/face | 51 mm |
N - Mounting hole dimension | 19 mm |
N1 - Length of attachment slot | 16 mm |
N2 - Height of attachment slot | 32 mm |
S - Dist. cent. of raceway to face IR on side opp. lock. device | 7,5 mm |
Z - Width over covers | 62,7 mm |
Marca | SNR |

DESEMPENHO | |
---|---|
C - Dynamic load rating | 12,8 kN |
C0 - Static load rating | 6,65 kN |
Operating temperature min. | -40 °C |
Operating temperature max. | 100 °C |
OUTRAS CARACTERÍSTICAS | |
---|---|
Peso | 0,824 kg |
