EXPA203NT04 - SNR

EXPA203NT04

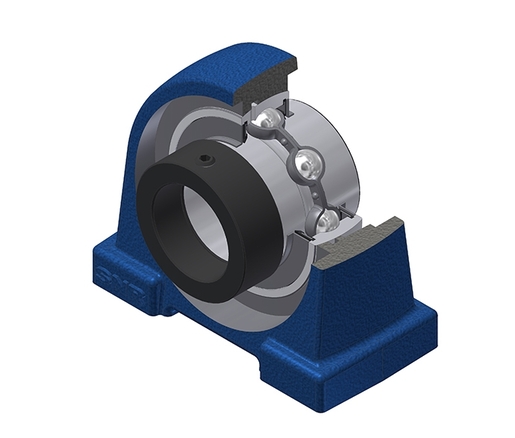

Corpo fundido cinzento,rolamentos de esferas com inserção radial com anel de trava excêntrico,junta de vedação com anel de projeção, para aplicações em baixa temperatura

Mancais autoalinháveis com diversas opções de fixação e alojamentos feitos de ferro fundido, aço inoxidável ou plástico.

Este kit contém a (s) seguinte (s) referência (s)

Documentation

Product information

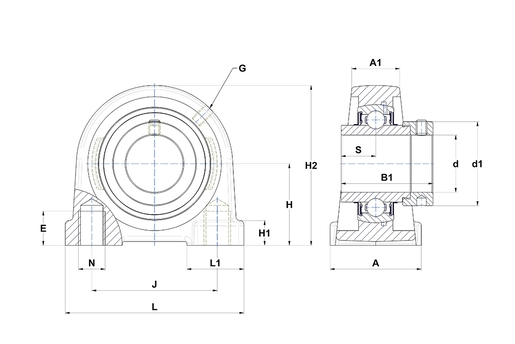

CARACTERÍSTICAS TÉCNICAS
MarcaSNR
A - Housing width40 mm
A1 - Housing top width22 mm
B - Width of Inner Ring34 mm
d - Shaft diameter17 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve32,4 mm
E - Mounting hole thread depth13 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.30,2 mm
H1 - Housing foot height11 mm
H2 - Housing height62 mm
J - Mounting holes distance52 mm
L - Housing length76 mm
L1 - Housing foot length22 mm
N - Mounting hole dimensionM10
S - Distance front side/bearing centre17 mm
undefined
DESEMPENHO
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OUTRAS CARACTERÍSTICAS
Peso0,65 kg
Torque recomendado para fixação do parafuso de pressão5,5 N-m
