Gaiolas de agulhas

K32X36X15S - NTN

K32X36X15S

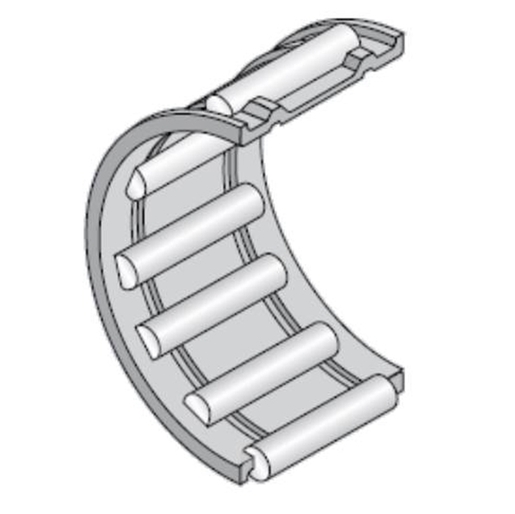

Rolamento de agulha, montagem da gaiola, gaiola soldada

Documentation

Product information

CARACTERÍSTICAS TÉCNICAS
MarcaNTN

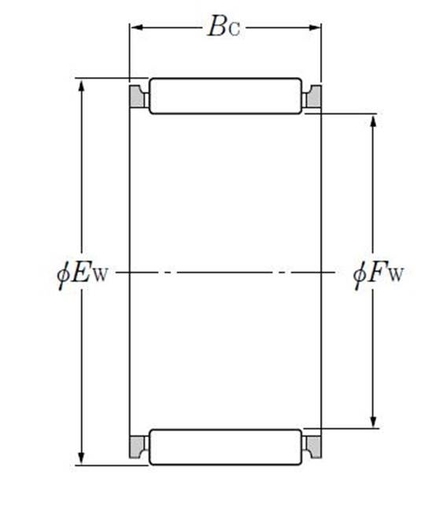

Fw - Under rollers diameter32 mm
Ew - Upper rollers diameter36 mm
Bc - Cage Width15 mm
Peso0,017 kg
undefined
DESEMPENHO
Cr - Dynamic load rating14,3 kN
C0r - Static load rating26,4 kN
N lim - Grease lubrication limit speed8500 tr/min
N lim - Oil lubrication limit speed13000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
RECOMENDACOES DE BARREIRA
b - Raceway width15 mm
